Automotive Battery Voltage Chart

Automotive Battery Voltage Chart. Using a clear backlit lcd display and an intuitive user interface, all parameters can be recalled with just a button press. 12 volt lead acid battery state of charge (soc) vs.

Car Battery Charge Voltage Chart Tonmo Tbcct Co from your-money-here.blogspot.com

The lead acid battery uses the constant current constant voltage (cccv) charge method. Sealed/flooded lead acid battery voltage gel battery voltage agm battery voltage; The vehicle electronics and source of energy (i.e., the battery).

Source: tontio.com

A good battery should be between 12.4 to 12.6v at rest, it will drop some if any accesories are on (lights, radio, phone or gps chargers, flashers, etc) if you have an automotive voltage/amperage tester available, you can do a load test on the battery (hook it up and load it by 1/2 the cca rating of the battery for 15 seconds) if it drops below 10v, it's time for a new battery. If the voltmeter shows a voltage reading of 12.2 volts then the battery is approximately 50% charged.

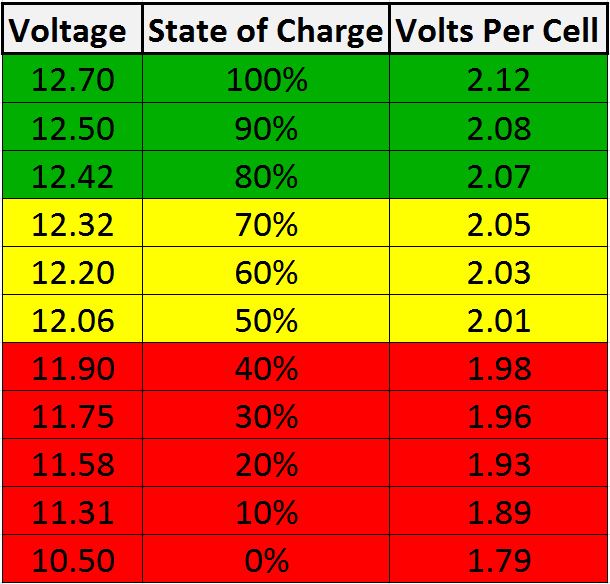

Source: www.atlanticwastepower.com

The vehicle electronics and source of energy (i.e., the battery). Watts = volts x amps example:

Source: www.pinterest.ca

This is intended as a guide only as the voltage reading will be effected by the battery age, technology and temperature. The voltage for a 12v lithium iron phosphate (lifepo4) battery should be around 14 volts or more.

Source: your-money-here.blogspot.com

Set your meter to dc volts. The above chart gives an indication of what the voltage should be at different states of charge and operating conditions.

Source: millennialdiyer.com

Car battery voltage must be above 12.2 volts to operate properly if the voltage isn’t within spec, perform a voltage drop test to determine the condition of the terminal/post connection. Using a clear backlit lcd display and an intuitive user interface, all parameters can be recalled with just a button press.

Set Your Meter To Dc Volts.

Note that these readings assume the battery has rested at least 12h after charging. The above chart gives an indication of what the voltage should be at different states of charge and operating conditions. A fully charged car battery has 12.6 volts.

View The Most Popular Hydrometer On Amzn.

A perfect voltage with the engine running is between 13.7. As a battery is charged the indicated voltage increases and, as discharging occurs, the indicated voltage decreases. The ideal car battery voltage with the engine running is between 13.7 and 14.7v.

You Can Check Your Car Battery Start Of Charge Using A Voltmeter, Thermometer And This Car Battery Voltage Chart.

A second battery input is also provided to monitor voltage on a second battery bank. However, in the event of a major incident (e.g. Open circuit voltage is the voltage of the battery with no load or disconnected from any circuit.

Car Battery Voltage Chart — State Of Charge.

Vehicle crashes), the ger main contactors must open to avoid potentially Use a voltmeter to measure the open circuit voltage of the battery (see car battery voltage chart). In normal use, the main contactors will experience repeated short term lower level current overloads, for example;

A Good Battery Should Be Between 12.4 To 12.6V At Rest, It Will Drop Some If Any Accesories Are On (Lights, Radio, Phone Or Gps Chargers, Flashers, Etc) If You Have An Automotive Voltage/Amperage Tester Available, You Can Do A Load Test On The Battery (Hook It Up And Load It By 1/2 The Cca Rating Of The Battery For 15 Seconds) If It Drops Below 10V, It's Time For A New Battery.

This is important to know when gauging how healthy your battery is. Car battery voltage chart — state of charge you can check your car battery start of charge using a voltmeter, thermometer and this car battery voltage chart. How fast will a car battery drain (parasitic draw) column header = battery rating.
